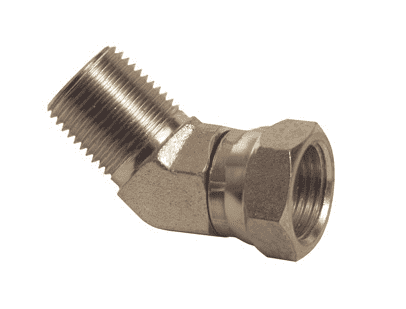

Series 1503 Hydraulic Adapter - Male NPTF x Female NPSM Swivel 45° Elbow

1503 Series 45° Elbow Male NPTF x Female NPSM Swivel by Dixon®, manufactured for high-pressure hydraulic systems. Designed for a tight, reliable seal and interchangeable with industry-standard fittings.

Technical Specifications

• Fitting 1: Male NPTF. Dry seal via tapered thread (no PTFE tape required).

• Fitting 2: Female NPSM. Swivel nut, mechanical seal.

• Material: Zinc-plated carbon steel (high corrosion resistance).

• Working temperature: -40°C to +120°C.

• Working pressure: 1,150 to 5,000 PSI (depending on part diameter).

Applications

Ideal for pressure and return lines in heavy machinery, agricultural equipment, general industry and mobile hydraulic systems. Compatible with hydraulic oils and lubricants.
