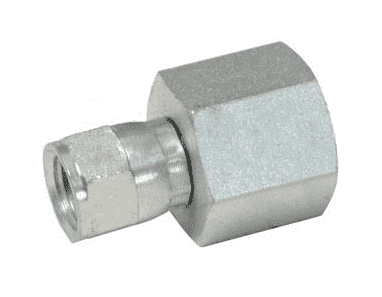

Series 6506 Hydraulic Adapter - Female JIC 37° Swivel x Female NPTF
Series 6506 Hydraulic Adapter - Female JIC 37° Swivel x Female NPTF
6506-4-2
Couldn't load pickup availability
- Secure Purchase
- Guaranteed Quality
We offer fast, secure shipping.
Female JIC 37° Swivel x Female NPTF from the Dixon® 6506 series, manufactured for high-pressure hydraulic systems. Engineered for a tight, reliable seal and interchangeable with industry-standard fittings.
Technical Specifications
Fitting 1: Female JIC. Mechanical seal via 37° conical seat.
Fitting 2: Female NPTF. Dry seal via tapered thread (no Teflon required).
Material: Carbon steel with zinc coating (high corrosion resistance).
Working temperature: -40°C to +120°C.
Working pressure: 1,000 to 4,500 PSI (depending on part diameter).
Applications
Ideal for pressure and return lines in heavy machinery, agricultural equipment, general industry and mobile hydraulic systems. Compatible with hydraulic oils and lubricants.
