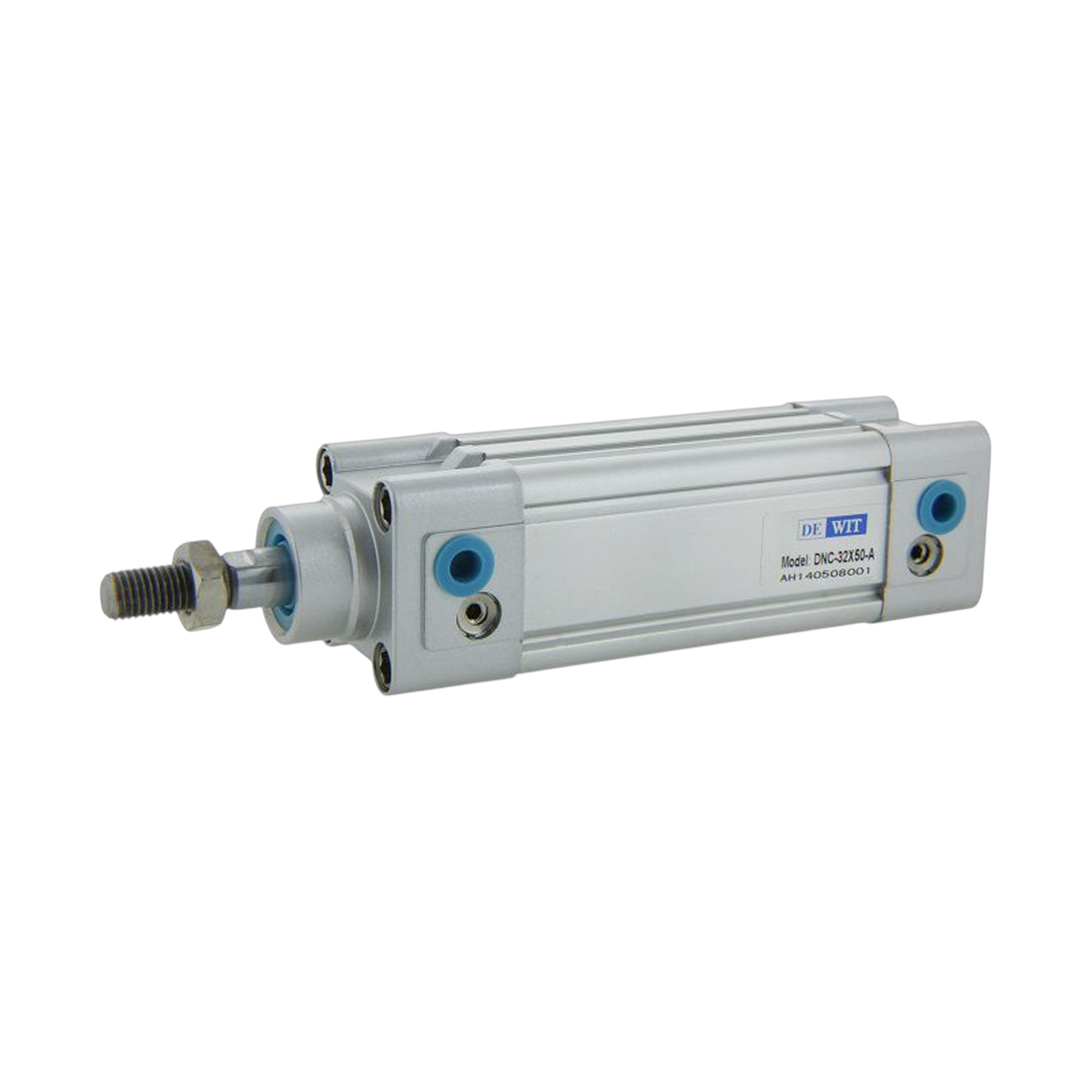

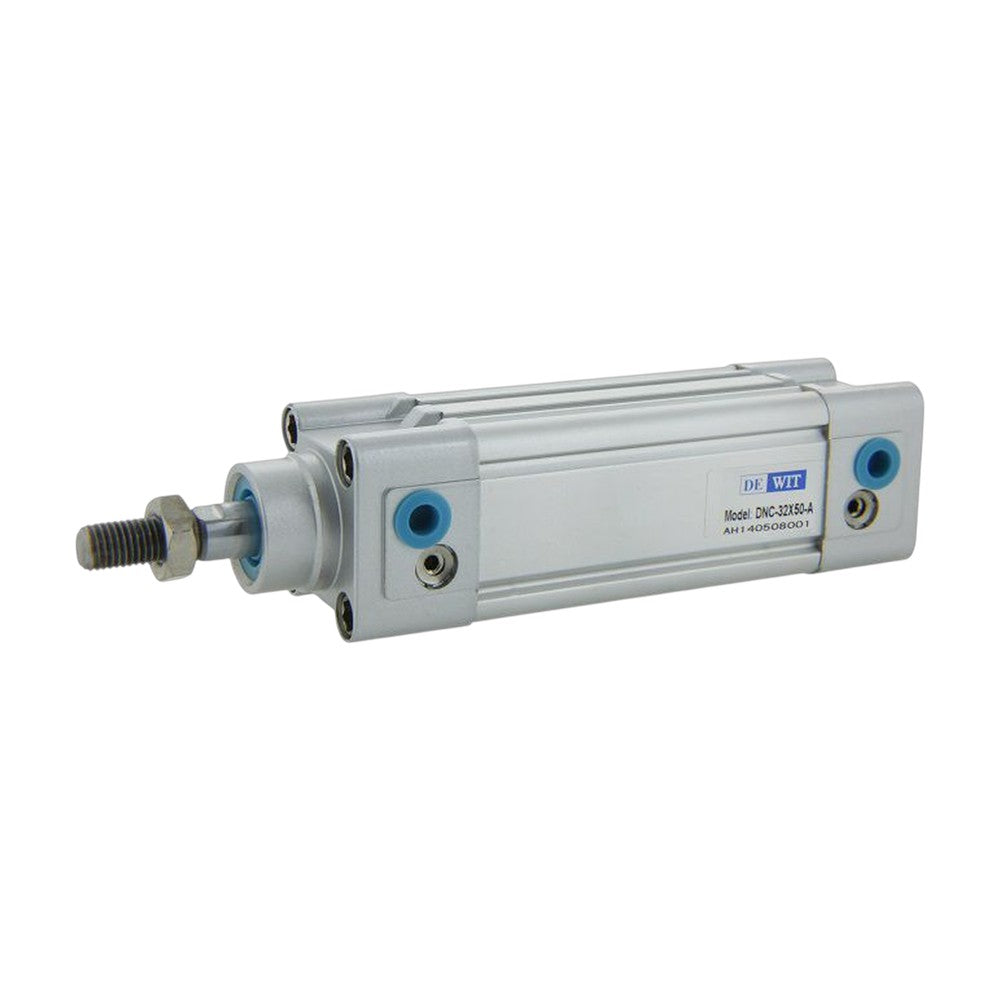

DNC Series ISO 15552 Double-Acting Pneumatic Cylinder - Configurable Bore x Stroke

The DeWit DNC Series Cylinder represents the modern evolution of linear pneumatic actuators. Manufactured under the ISO 15552 standard (which replaces and updates ISO 6431), this cylinder stands out for its extruded aluminum square-profile barrel. Its design is not only aesthetically superior and easier to clean, but functionally integrates the slots for magnetic sensors within the cylinder body itself.

Technical Specifications:

• Standard: ISO 15552 (Dimensionally interchangeable with ISO 6431 and VDMA 24562).

• Action Type: Double Acting.

• Bore: 32, 40, 50, 63, 80, 100, 125 mm.

• Stroke: Standard from 25mm up to 1000mm.

• Cushioning: Pneumatic adjustable at both ends (screw-type regulators).

• Piston: Magnetic (Sensor-ready).

• Sensor Mounting: Integrated "T" slots in the body (Flush mounting).

• Rod: Hard chrome-plated and polished C45 steel.

• Working Pressure: 1 to 10 Bar.

• Seals: High wear-resistant Polyurethane (PU).

Common Applications:

• Automatic packaging machines.

• Pick & Place systems.

• General automation where aesthetics and cleanliness are important.

• Direct replacement for Festo DNC, SMC CP96, etc. cylinders.

Download the Technical Datasheet by clicking on the Image
