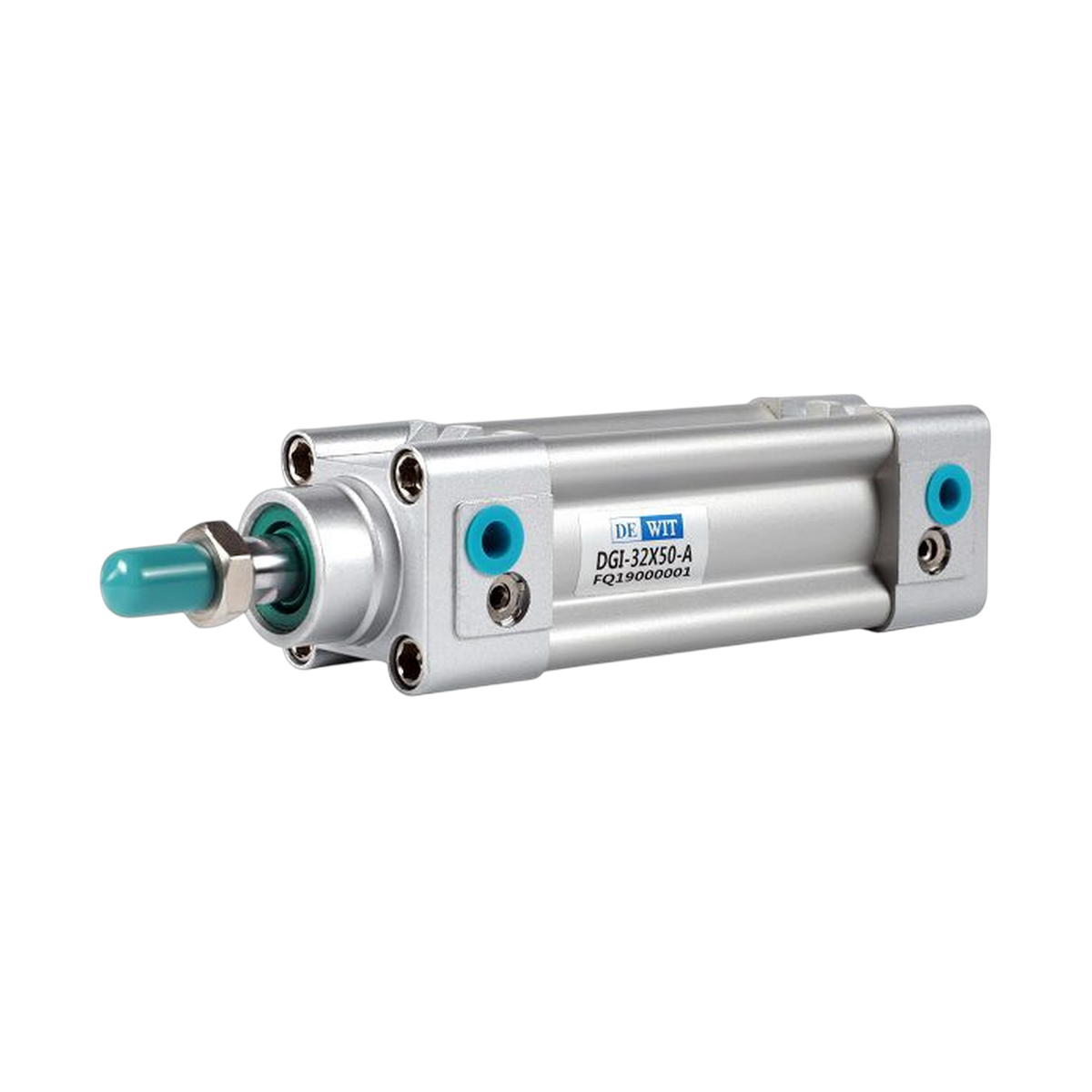

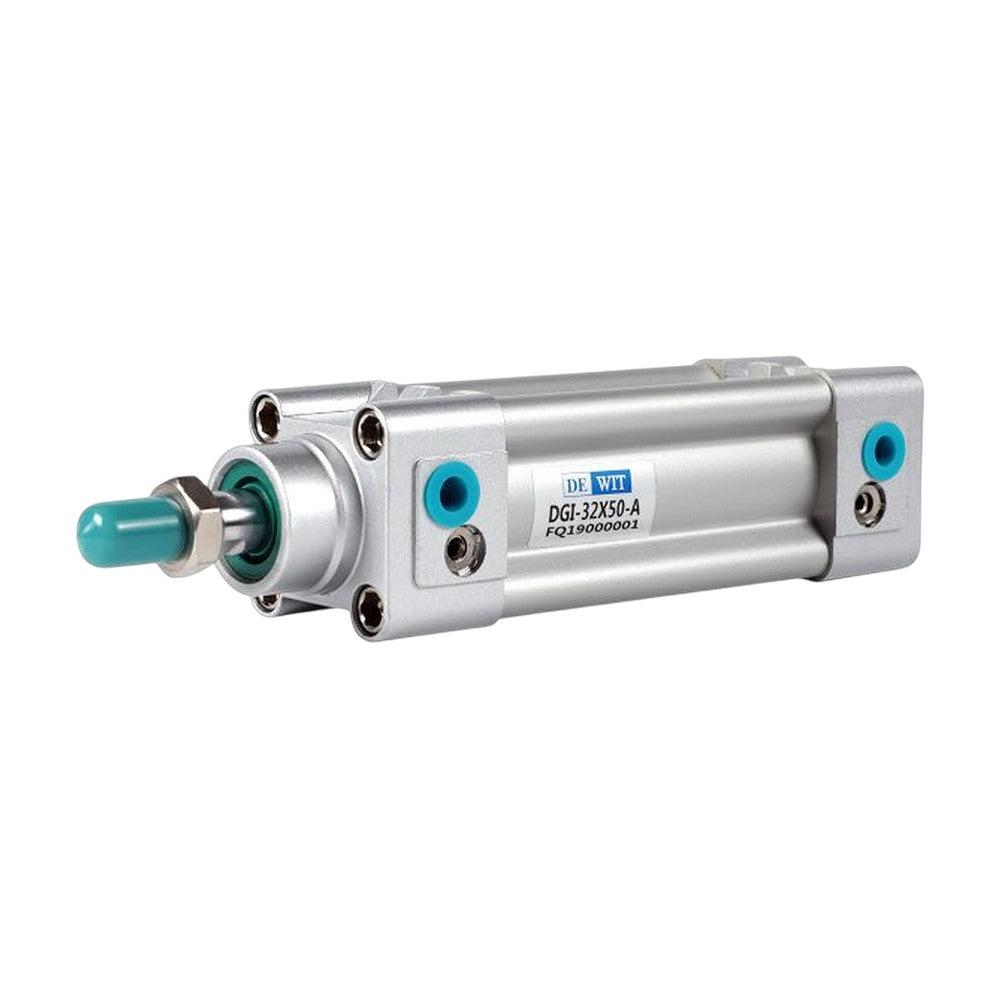

DGI Series ISO VDMA 6431 Double-Acting Pneumatic Cylinder - Configurable Bore x Stroke

The DeWit DGI Series Cylinder is a high-performance linear actuator designed for demanding industrial automation applications. Its construction strictly complies with the international ISO 6431 standards, ensuring that the mounting hole distances, rod diameter, and threads are universal. Thanks to its integrated magnetic ring on the piston, it is ready to be used with position sensors (Reed switch or Solid State) for feedback in PLC systems.

Technical Specifications:

• Standard: ISO 6431 / VDMA 24562 (Interchangeable)

• Action Type: Double Acting (Air to extend, Air to retract).

• Available Bore Diameters: 32, 40, 50, 63, 80, 100, 125 mm.

• Stroke: From 25mm up to 1000mm (Standard in 25/50mm increments).

• Cushioning: Adjustable Pneumatic Cushioning at both ends (prevents internal impacts).

• Piston: Magnetic (Standard).

• Working Pressure: 1 to 10 Bar (15 to 145 PSI).

• Temperature: -10°C to +60°C.

Common Applications:

• Assembly and packaging lines.

• Pushing and rejecting products on conveyor belts.

• Opening and closing of heavy gates.

• Plastic injection machinery and presses.

Download the Technical Datasheet by clicking on the Image
