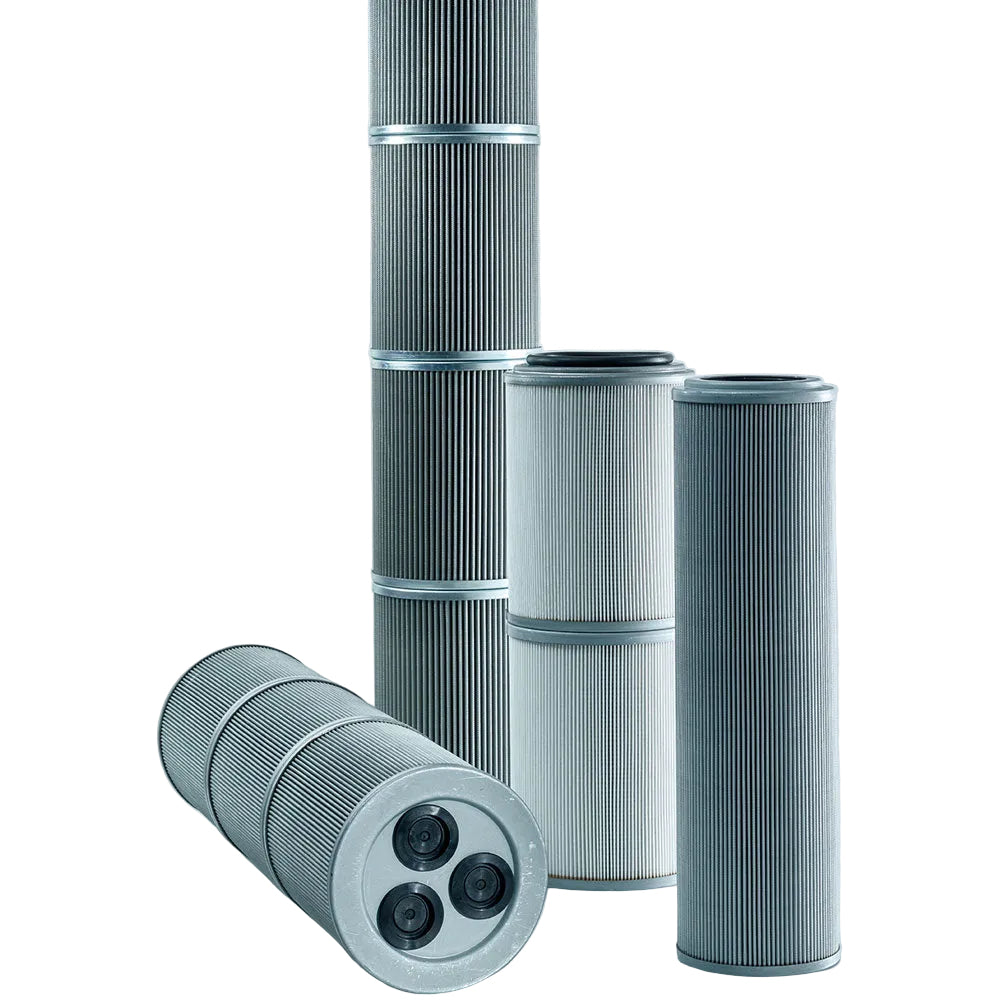

Eaton 01.NL Series In-Line Filter Element (DIN 24550-3) Configure Nominal Size, Microns, Pressure and Seal

Eaton Series 01.NL In-Line Filter Element (DIN 24550-3). In-line filter element compliant with the DIN 24550-3 standard, for pressure and lubrication filters. High-efficiency glass fiber media with outside-to-inside flow.

Brand: Eaton/Internormen
Type: Hydraulic in-line filter element
Filter media: Glass fiber
Micron rating (actual grade): 20 µm(c)
Collapse resistance (Δp): 30 bar
Seal material: Nitrile
Standard: DIN 24550-3

The stated micron rating is the actual filtration grade µm(c), decoded from the element media (for example 25VG = 20 µm(c)), not the number that appears in the code.
