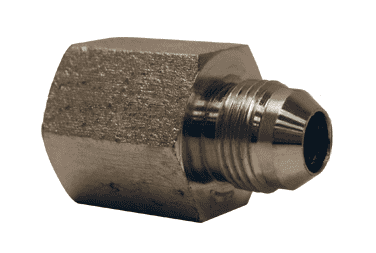

Hydraulic Adapter Series 2405 - Male JIC 37° x Female NPTF

Male JIC 37° x Female NPTF from the Dixon® series 2405, manufactured for high-pressure hydraulic systems. Designed for a tight, reliable seal and interchangeable with industry-standard fittings.

Technical Specifications

• Connection 1: Male JIC. Mechanical seal by 37° conical seat.

• Connection 2: Male NPTF. Dry seal by tapered thread (no PTFE tape required).

• Material: Zinc-plated carbon steel (high corrosion resistance).

• Working temperature: -40°C to +120°C.

• Working pressure: 1,000 to 5,000 PSI (depending on part diameter).

Applications

Ideal for pressure and return lines in heavy machinery, agricultural equipment, general industry and mobile hydraulic systems. Compatible with hydraulic oils and lubricants.
