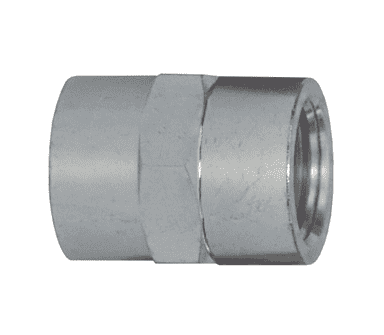

Series 5000 Hydraulic Adapter - Female Hex NPTF Union

5000 Series Female Hex Union NPTF by Dixon®, manufactured for high-pressure hydraulic systems. Designed for a tight, reliable seal and interchangeable with industry-standard fittings.

Technical Specifications

• Fitting 1: Female NPTF. Dry seal via tapered thread (no PTFE tape required).

• Fitting 2: Female NPTF. Dry seal via tapered thread (no PTFE tape required).

• Material: Zinc-plated carbon steel (high corrosion resistance).

• Working temperature: -40°C to +120°C.

• Working pressure: 1,000 to 5,000 PSI (depending on part diameter).

Applications

Ideal for pressure and return lines in heavy machinery, agricultural equipment, general industry and mobile hydraulic systems. Compatible with hydraulic oils and lubricants.
