SAE Code 61 Flange 4S/FL Series - Configure Sizes and Geometry (Figure)

SAE Code 61 Flange series 4S Danfoss / Aeroquip. Manufactured to be assembled with 4S series hydraulic hoses, which feature 4-layer spiral steel wire reinforcement — a type of construction that withstands very high working pressures, constant pressure surges and extreme vibration. It is the ideal choice for heavy machinery, construction and agricultural equipment, and heavy-duty hydraulic systems. Choose the geometry and the size you need.

Technical Features:

• Brand: Danfoss (Aeroquip)
• Quality: Premium
• Series: 4S (for hose with 4-layer spiral steel wire reinforcement)

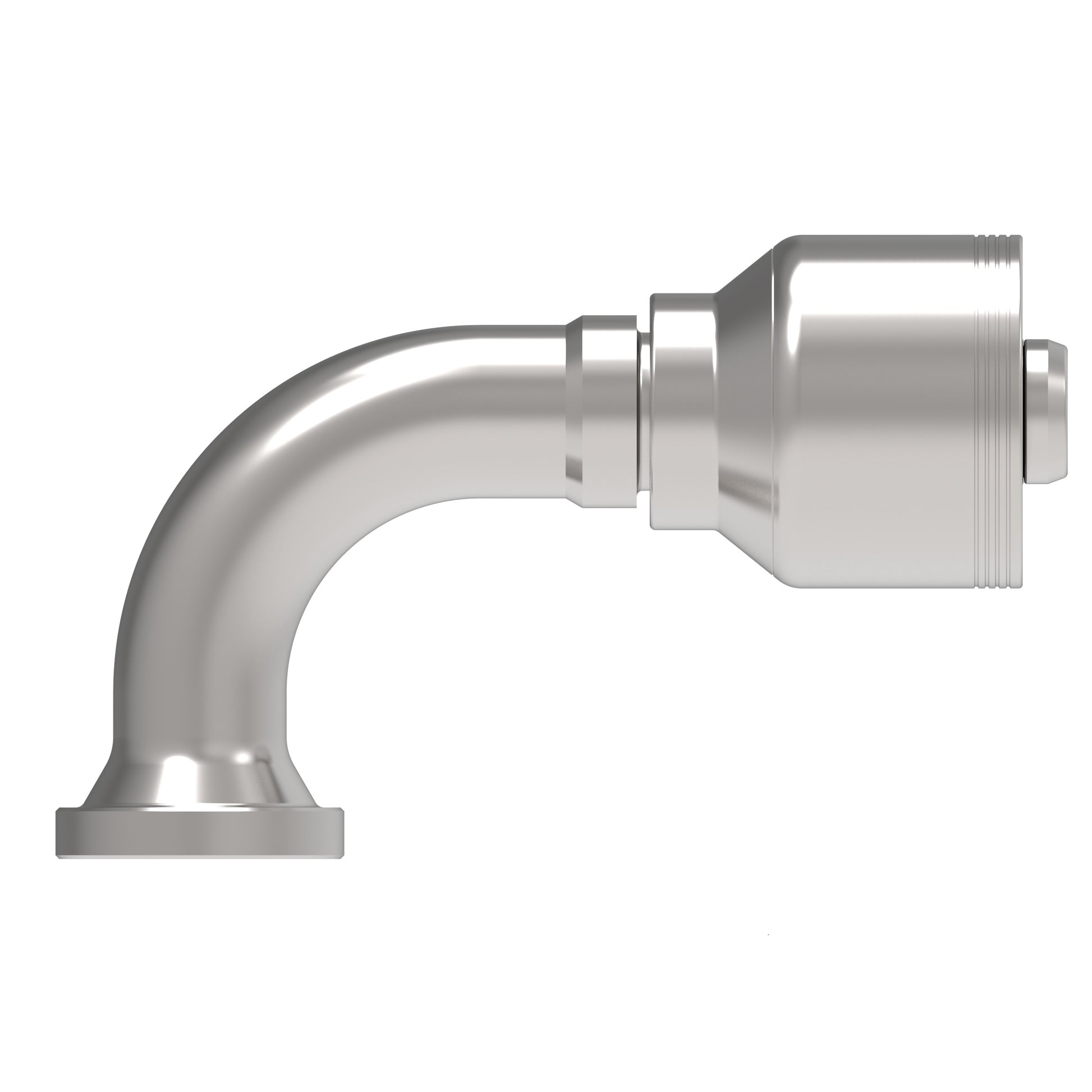

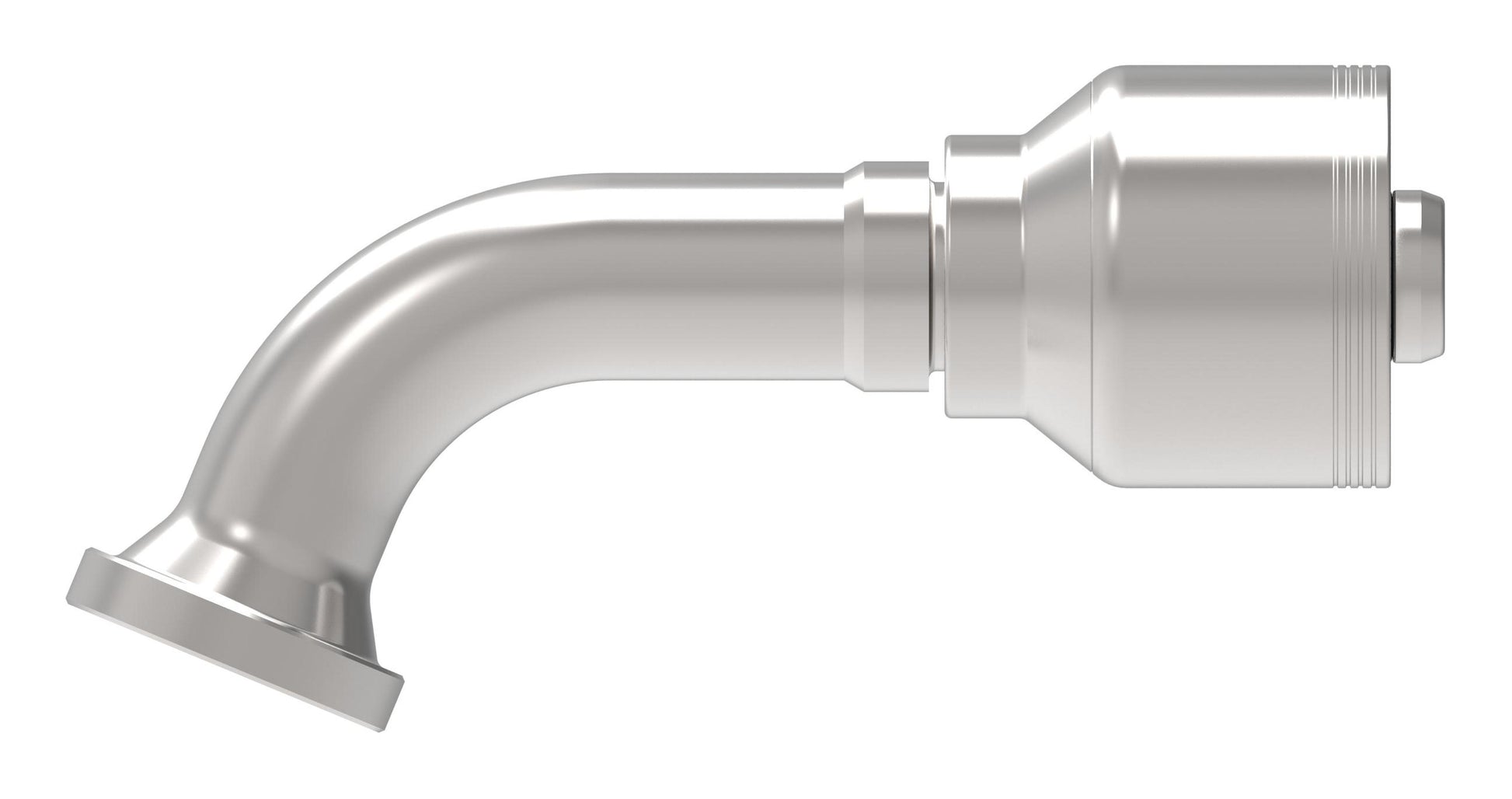

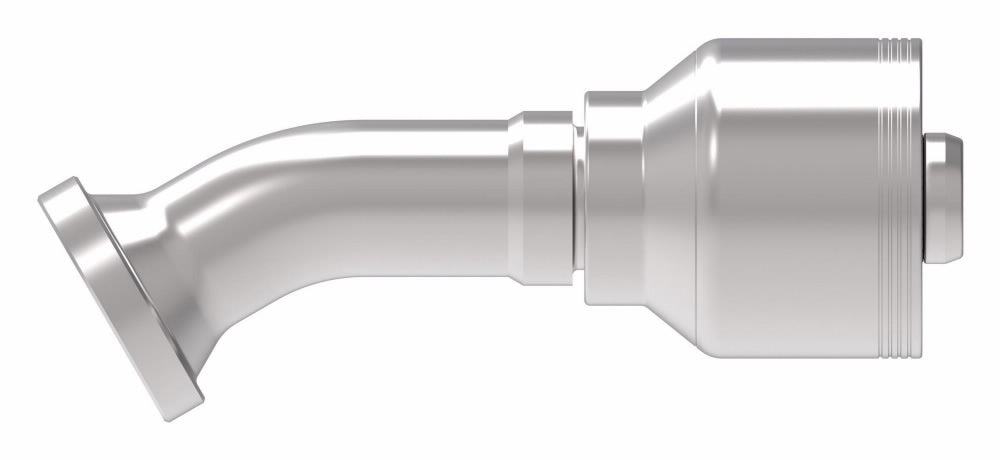

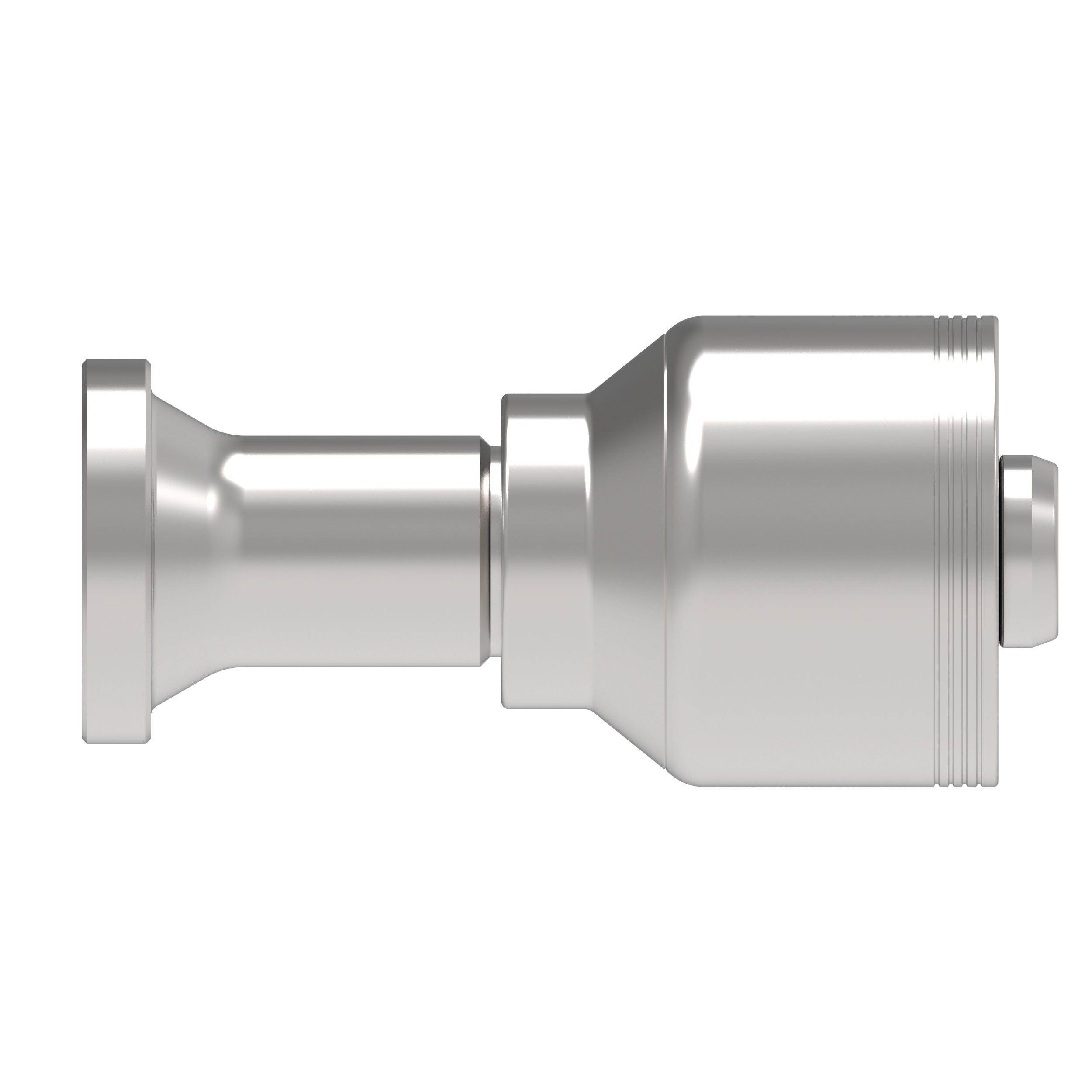

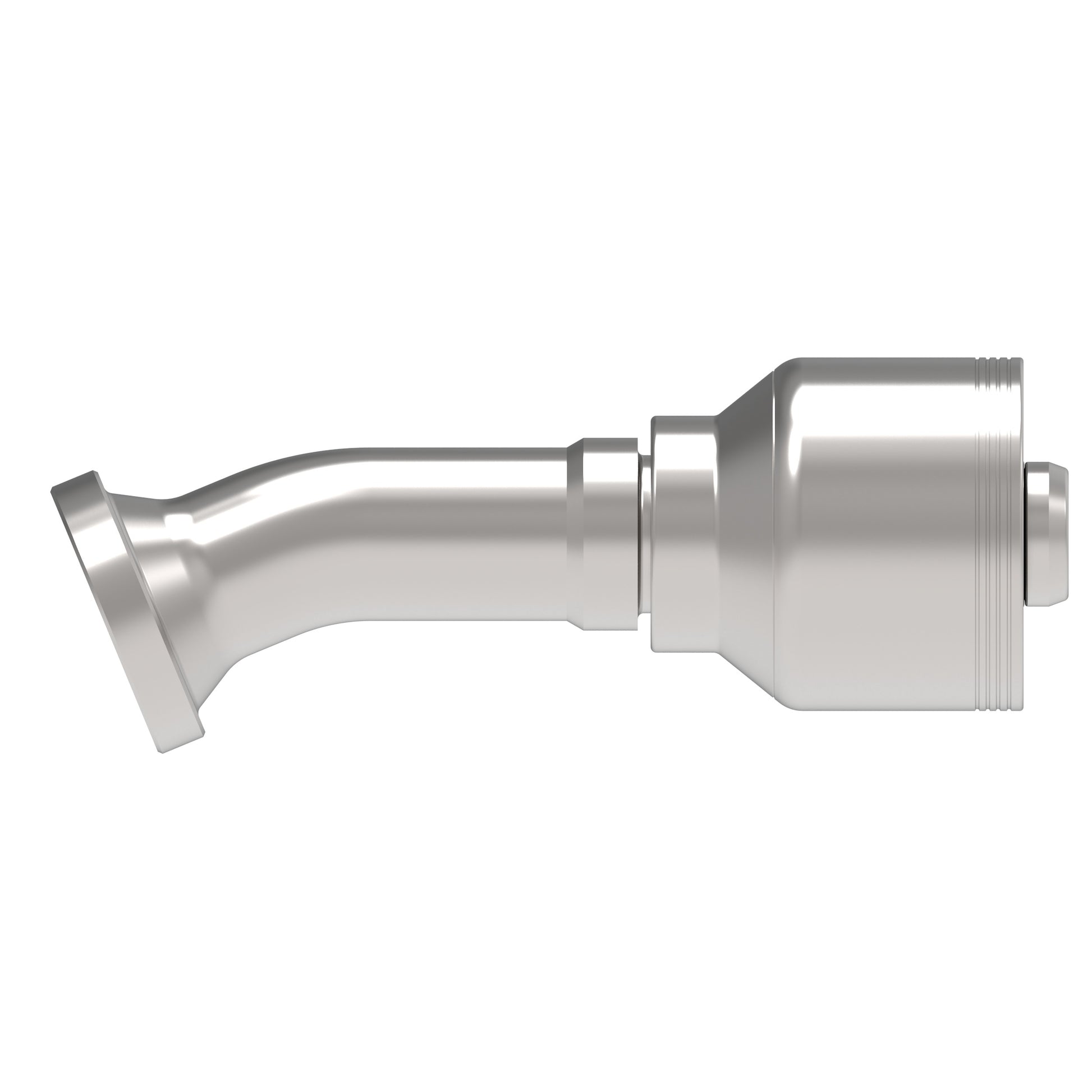

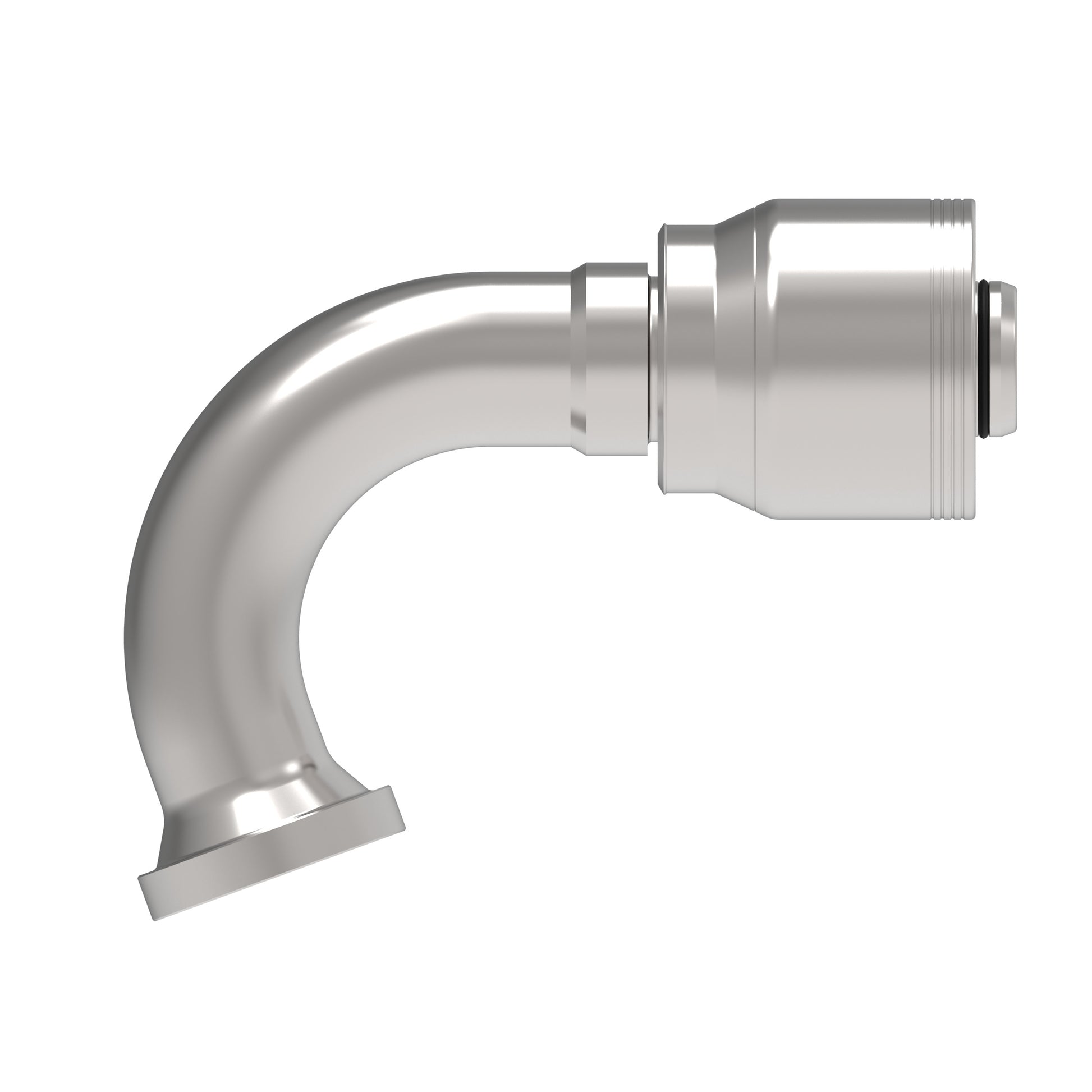

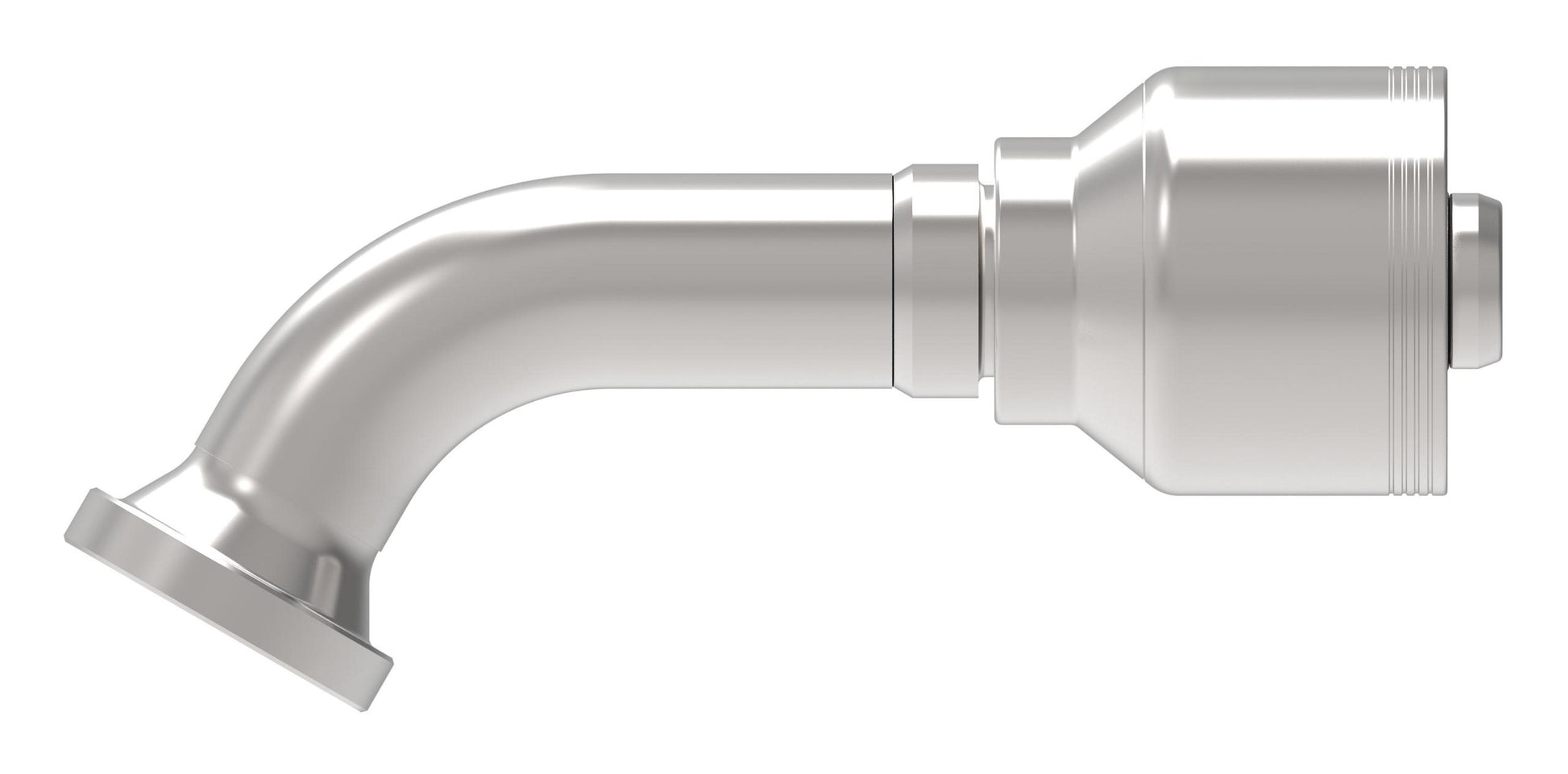

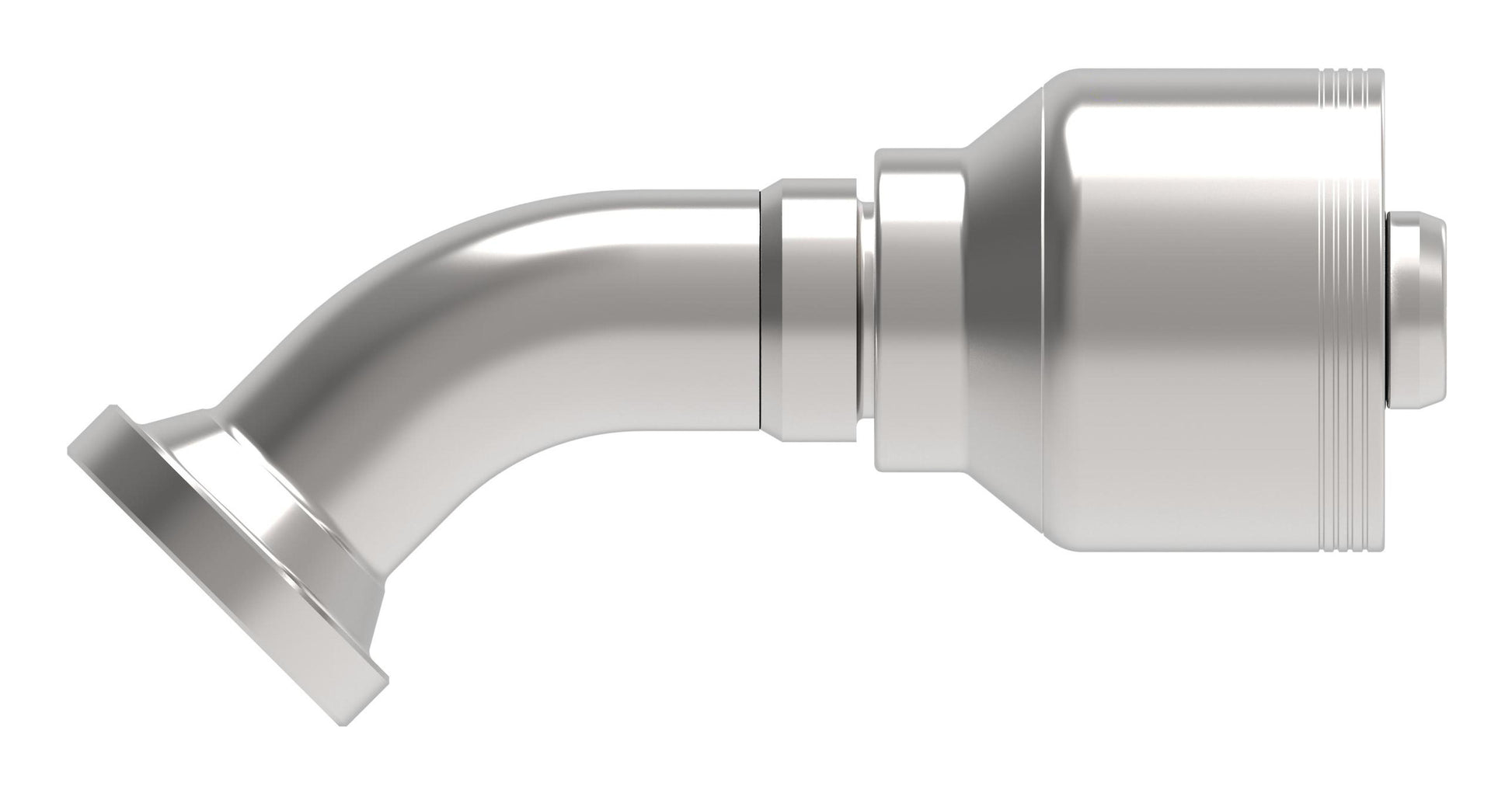

• Terminal type: SAE Code 61 Flange 3000 psi (selectable geometry: Straight, 22.5° Elbow, 30° Elbow, 45° Elbow, 60° Elbow, 67.5° Elbow, 90° Elbow, 110° Elbow)
• Coating: High-performance anti-corrosion Dura-Kote

Size tables by geometry (click to expand):
