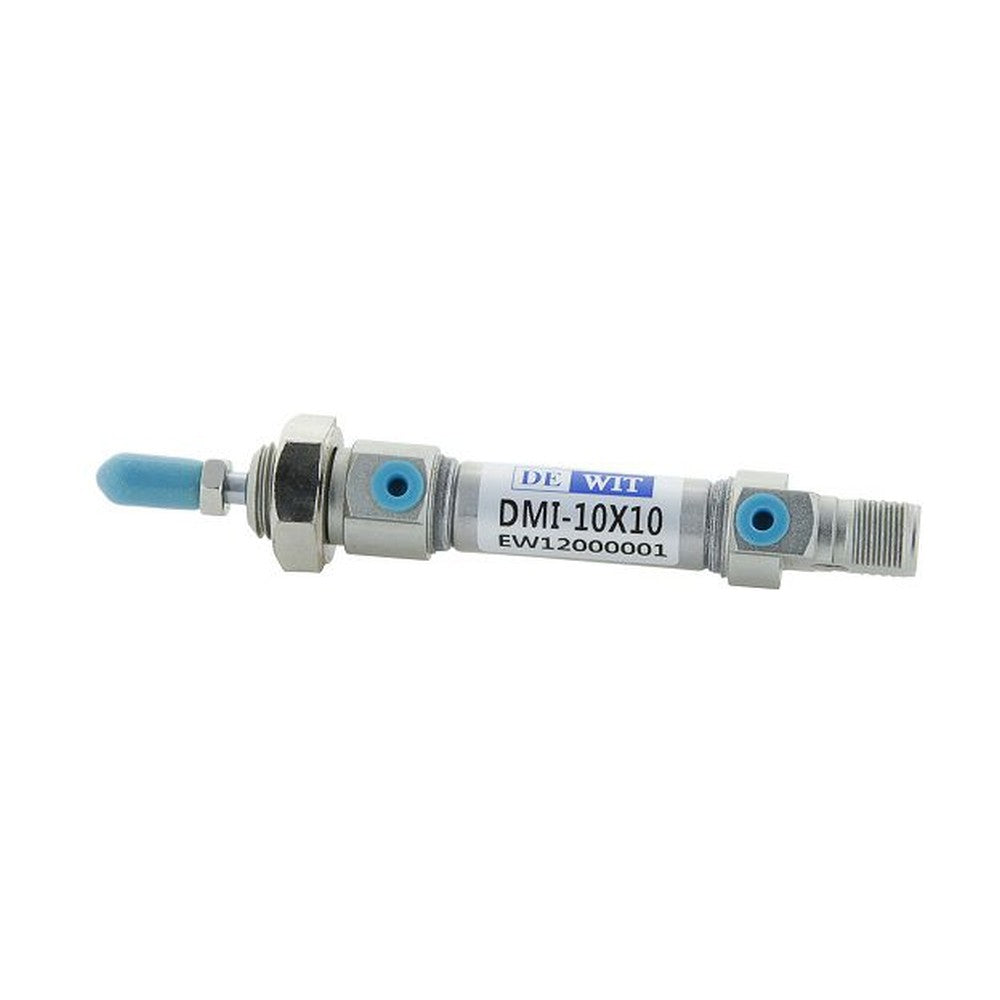

DMI Series Mini Pneumatic Cylinder - ISO VDMA 6432

The Series DMI Mini Pneumatic Cylinder is a double-acting actuator manufactured to the ISO VDMA 6432 standard, standardized and interchangeable with other brands. It is intended for applications that do not require high working force and where little space is available, thanks to its wide variety of bore sizes. Its stainless steel construction and aluminum end caps give it high durability.

Features:

• Type: ISO VDMA 6432 standardized mini pneumatic cylinder, interchangeable with other brands
• Action type: double-acting, single rod
• Bore sizes: 8, 10, 12, 16, 20 and 25 mm
• Standard strokes: 10 to 500 mm (max. 100 mm for 8-10 mm bores; 320 mm for 12-16 mm; 500 mm for 20-25 mm)
• Medium: clean, dry compressed air
• Lubrication: not required (if lubricated, use ISOVG32 oil)
• Pressure range: 0.1 to 0.9 MPa (1 to 9 Bar) · proof pressure 1.35 MPa (13.5 Bar)
• Operating temperature: -10 to 60 °C
• Speed: 50 to 750 mm/s
• Cushioning: elastic
• Port: M5 x 0.8 and G1/8
• Construction: stainless steel rod, barrel and piston; forged aluminum end caps
• Rod diameter: 4, 6, 8 and 10 mm · rod thread M4x0.7 / M6x1 / M8x1.25 / M10x1.25
• Sensing: magnetic piston · any mounting position

Download the Technical Data Sheet by clicking the Image
