High-Seal 90° Bulkhead Elbow Fitting DIN 2353 / EN ISO 8434-1, Metric WSS Series (Body Only)

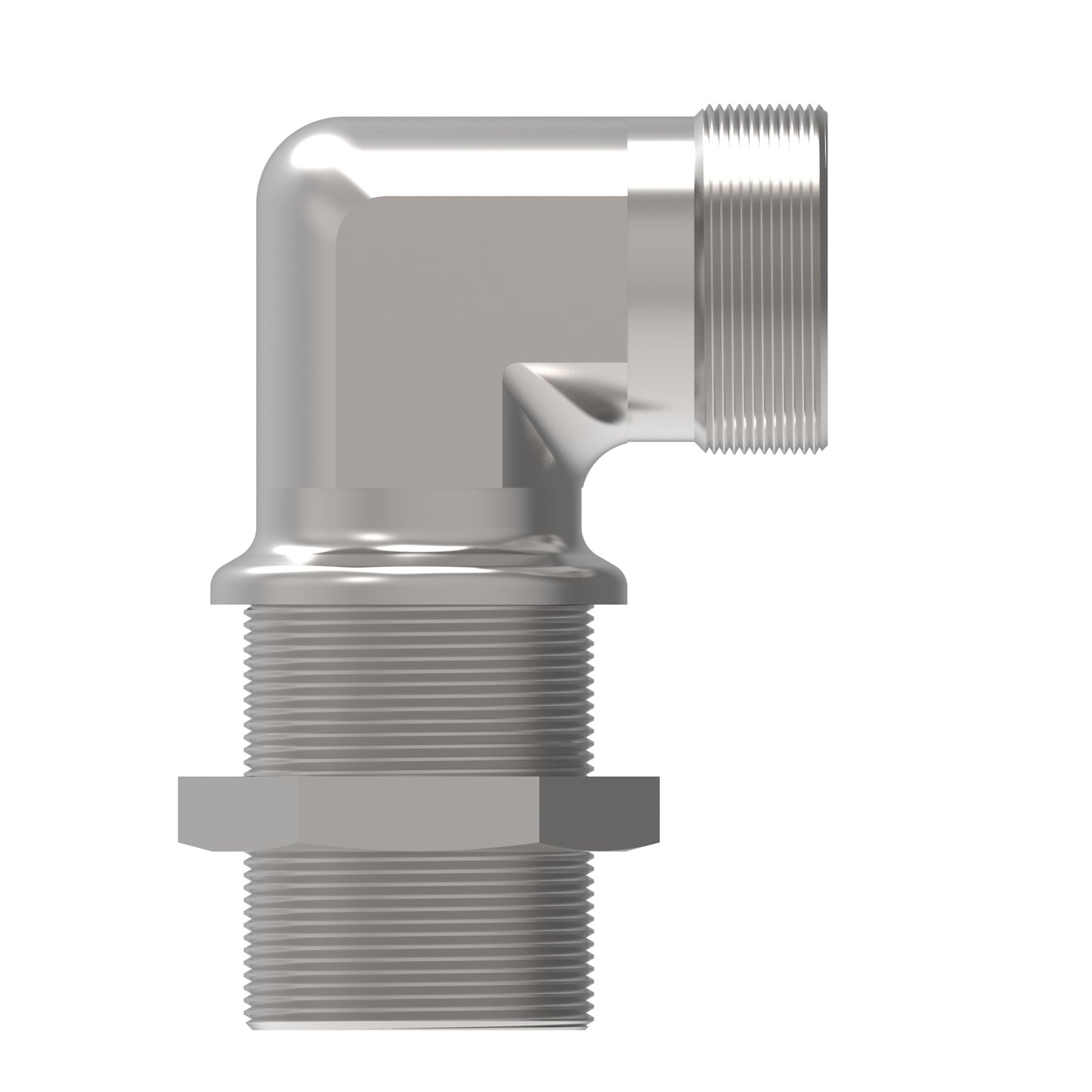

Danfoss Waltech® 90° Bulkhead Elbow — WSS Series. A highly engineered component for 100% leak-free coupling of metric steel tubing to the ports of valve blocks, cylinders and manifolds in high-pressure hydraulic systems.

Supplied as a complete factory-assembled kit, ready to install: body with pre-installed seals, metric retaining nut and precision cutting ring (ferrule) that grips the tube and forms a permanent seal.

The structural steel body is protected with Guardian Seal coating, providing more than 1,000 hours of resistance to red rust.

Available thread types:

• DIN (24° cone, DIN 2353 / ISO 8434-1): tube connection by cutting ring and metric union nut, with no port thread.
