High-Seal Banjo Fitting DIN 2353 / EN ISO 8434-1, BSPP / Metric P-RSWV Series (Body Only), Configure Sizes and Light or Heavy Series

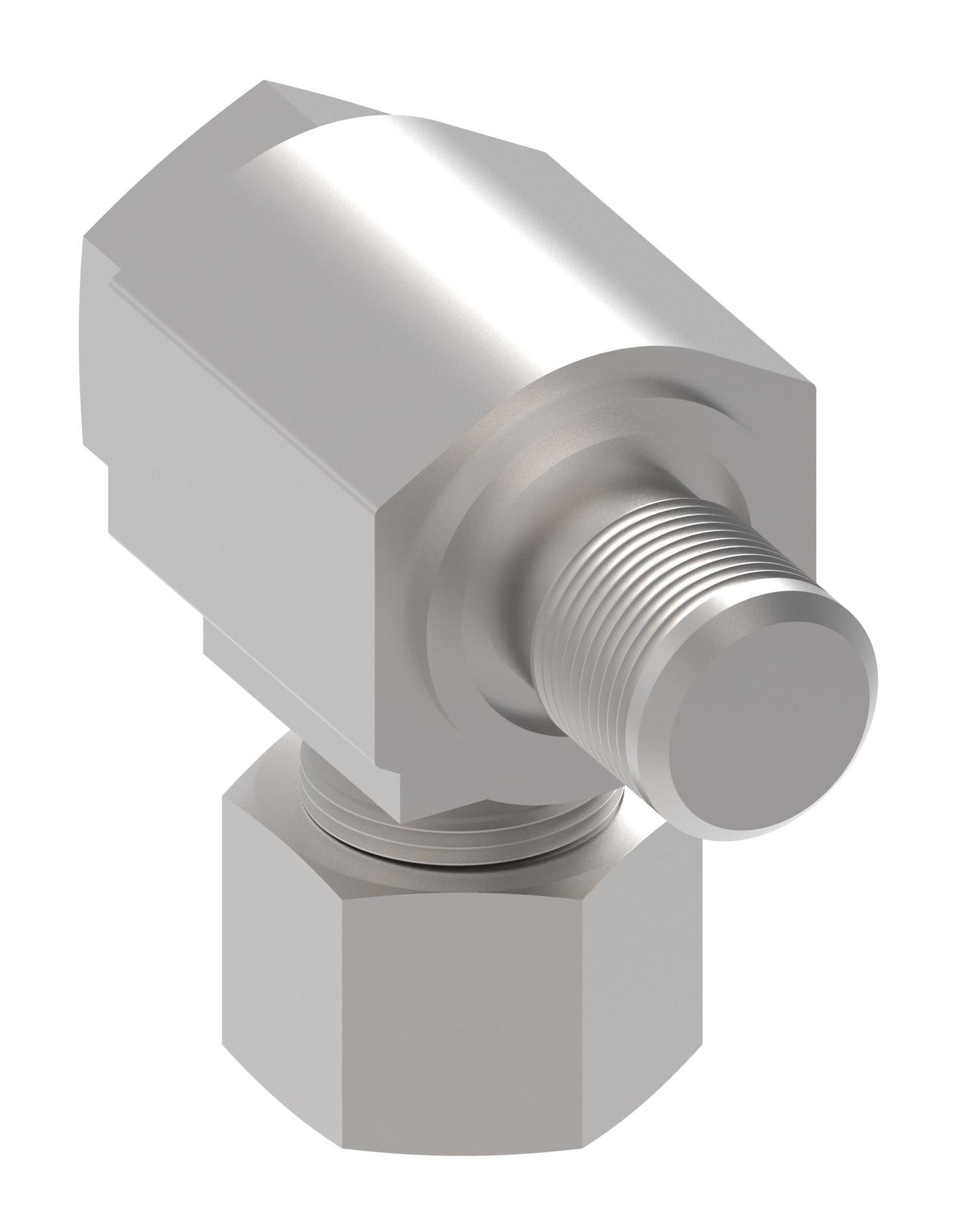

Danfoss Waltech® Banjo Fitting — Series P-RSWV. Highly engineered component for 100% leak-free connections in high-pressure hydraulic systems, between metric steel tubing and the ports of valve blocks, cylinders and manifolds.

Supplied as a complete factory-assembled kit, ready to install: body with pre-installed seals, metric retaining nut and precision cutting ring (ferrule) that grips the tube and forms a permanent seal.

The structural steel body is protected with Guardian Seal coating, offering more than 1,000 hours of red rust resistance.

Available thread types:

• BSPP (European thread, DIN-ISO 228): parallel thread with a soft elastomer seal (WD seal) that absorbs micro-vibrations and prevents torque loss.
• Metric (port, ISO 6149 / DIN): male metric port thread.
