High-Seal Union Tee Fitting DIN 2353 / EN ISO 8434-1, Metric TS Series (Body Only), Configure Sizes and Light or Heavy Series

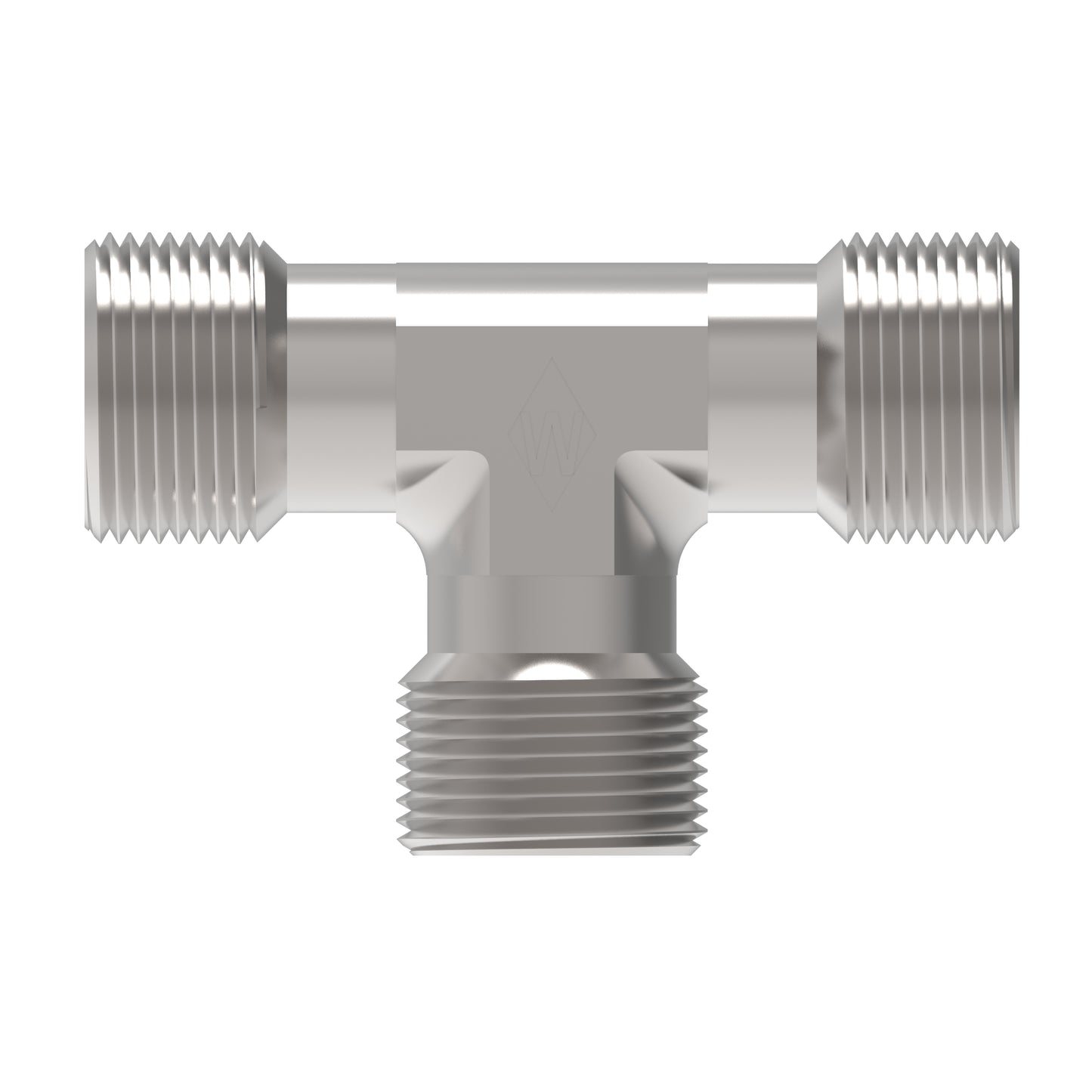

Danfoss Waltech® Tee Fitting — Series TS. Highly engineered component for 100% leak-free connections in high-pressure hydraulic systems, between metric steel tubing and the ports of valve blocks, cylinders and manifolds.

Supplied as a complete factory-assembled kit, ready to install: body with pre-installed seals, metric retaining nut and precision cutting ring (ferrule) that grips the tube and forms a permanent seal.

The structural steel body is protected with Guardian Seal coating, offering more than 1,000 hours of red rust resistance.

Available thread types:

• DIN (24° cone, DIN 2353 / ISO 8434-1): tube connection via cutting ring and metric union nut, no port thread.
