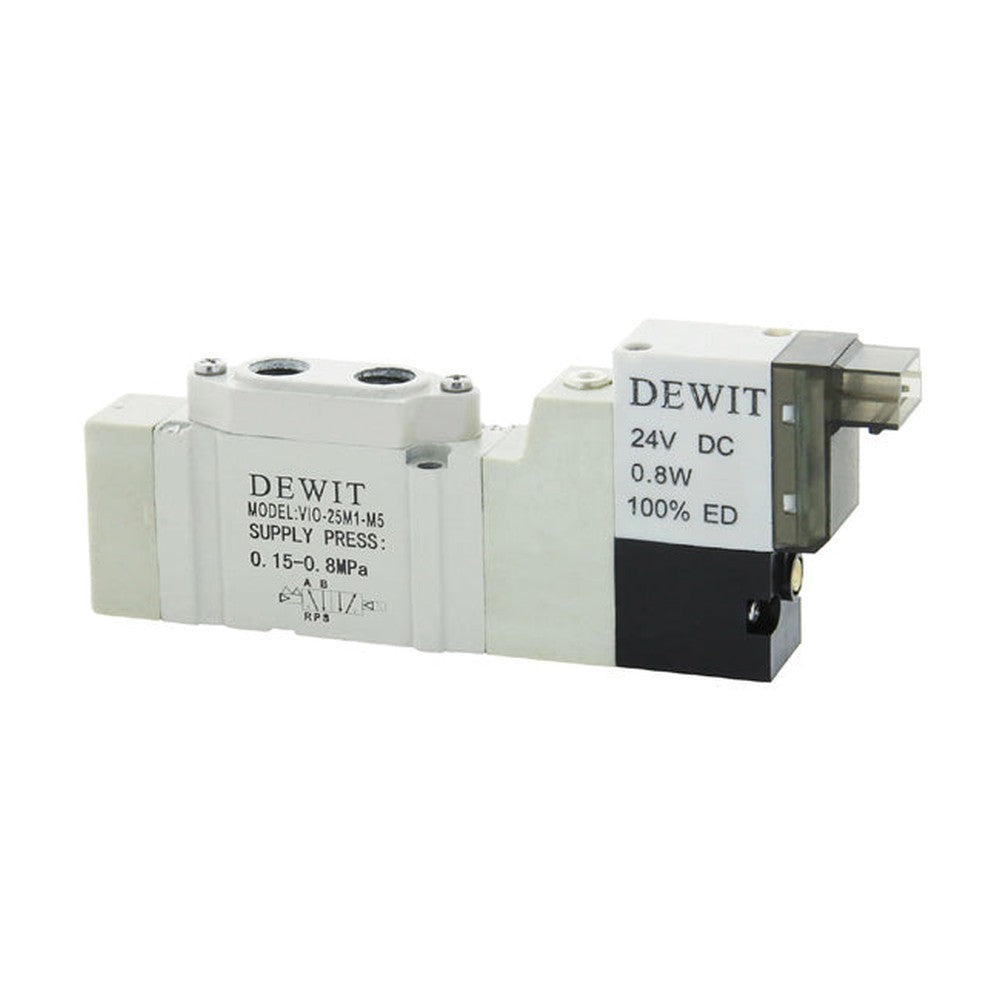

DE WIT V10 Series Pneumatic Solenoid Valve - 5/3-Way

DESCRIPTION FOR SOLENOID VALVE SERIES V10 (5/3 WAY - CENTERS)

The Series V10 5/3-Way (Centers) Pneumatic Solenoid Valve stands out in the industrial market for its excellent size-to-flow ratio and its high-precision micro-modular design. It is the perfect solution for integrators and engineers who need to automate complex systems with severe space constraints, enabling advanced, safe and precise control of the rest position of double-acting cylinders and actuators.

Key Features:

• Advanced Position Control (Centers): Available in three center configurations (Closed, Open/Exhaust or Pressurized), ideal for emergency stops, intermediate positioning or relieving pressure in the circuit.

• Pressurized Center Specialty (35P): Its configuration keeps both sides of the piston pressurized in the center position, preventing unexpected drops or sudden movements caused by gravity when the signal is cut.

• Energy Efficiency and Low Consumption: Equipped with optimized coils that significantly reduce heating and lower electrical consumption, protecting the outputs of programmable logic controllers (PLC).

• Industrial Modularity: Designed to operate individually or centrally on multiple aluminum manifolds or rails, allowing fast maintenance and a clean assembly.

Technical Specifications:

• Function: 5/3 Way (5 ports, 3 positions with spring return to center).

• Available Center Configurations: Closed Centers (C), Open/Exhaust Centers (E) and Pressurized Centers (P).

• Port Sizes: M5, 1/8" and 1/4" NPT.

• Compatible Voltage Options (Coils): 12 VDC, 24 VDC, 24 VAC, 110 VAC and 220 VAC.

• Compatible Fluid: Compressed air filtered to 40 microns (lubricated or non-lubricated).

• Working Pressure: 1.5 to 8.0 bar (22 to 115 psi).

• Operating Temperature Range: -5°C to 60°C.

• Seal Material: NBR (Nitrile) and coils with IP65 industrial protection against dust and splashes.
