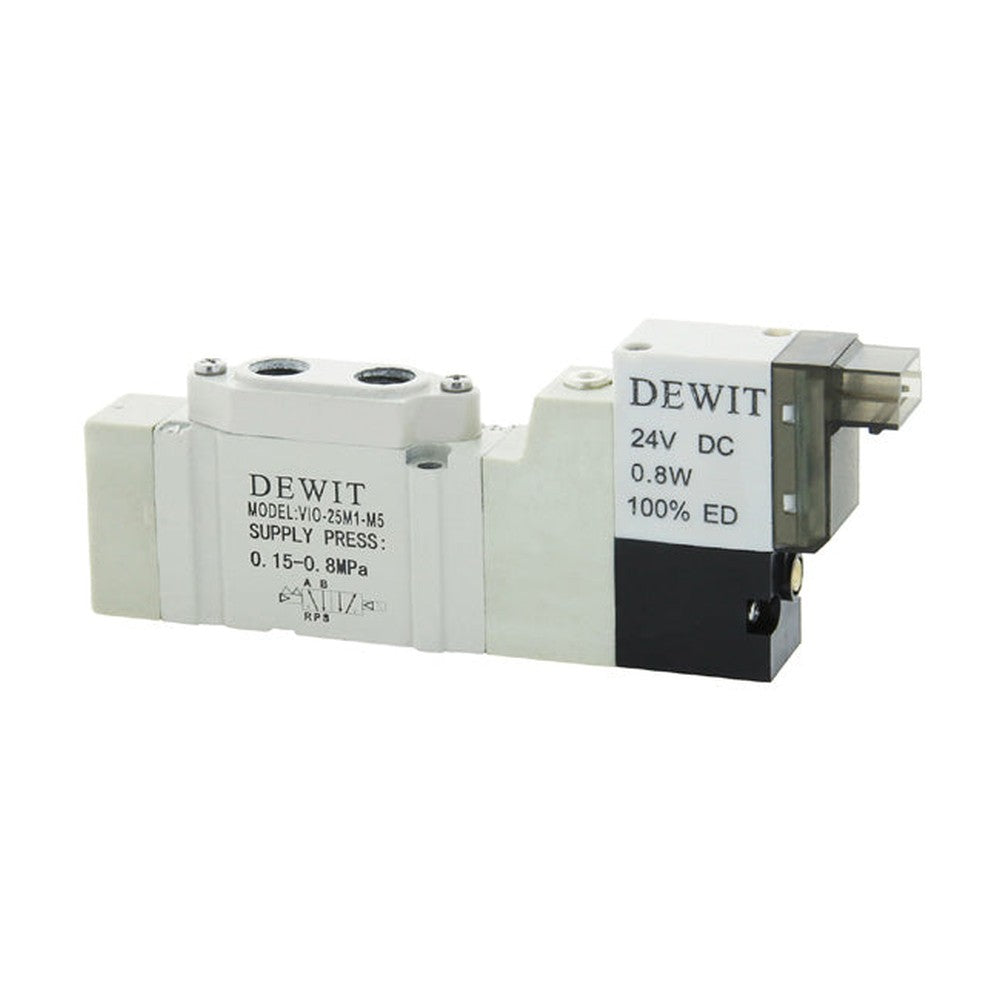

DE WIT V10 Series Pneumatic Solenoid Valve - 5/2-Way

DESCRIPTION FOR SOLENOID VALVE SERIES V10 (5/2 WAY)

The Series V10 5/2-Way Pneumatic Solenoid Valve stands out in the industrial market for its excellent balance between an ultra-compact size and flow capacity. It is the ideal solution for integrators and engineers who need to control double-acting pneumatic cylinders and actuators in systems where space is extremely limited, ensuring fast and efficient duty cycles.

Key Features:

• Intelligent Micro-Modular Design: Maximizes space savings in cabinets, industrial machinery and complex automation systems.

• High-Performance Operation: Its balanced internal aluminum spool ensures fast, precise and low-friction switching, reducing component wear.

• Advanced Electrical Efficiency: Equipped with low energy consumption coils that prevent excessive heating of the block and protect the PLC control outputs.

• Mounting Flexibility: Allows a clean individual inline installation or a centralized assembly on multiple aluminum manifolds to group the circuit.

Technical Specifications:

• Function: 5/2 Way (5 ports, 2 positions).

• Actuation Type: Single Solenoid (spring return) or Double Solenoid.

• Port Sizes: M5, 1/8" and 1/4" NPT.

• Coil Voltage Options: 12 VDC, 24 VDC, 24 VAC, 110 VAC and 220 VAC.

• Compatible Fluid: Compressed air filtered to 40 microns (lubricated or non-lubricated).

• Working Pressure: 1.5 to 8.0 bar (22 to 115 psi).

• Temperature Range: -5°C to 60°C.

• Protection and Insulation: Sealed coils with IP65 protection rating and Class F insulation.
