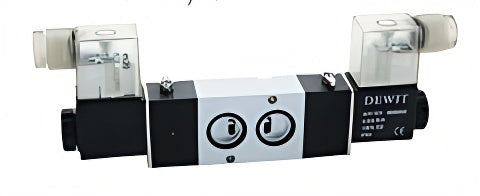

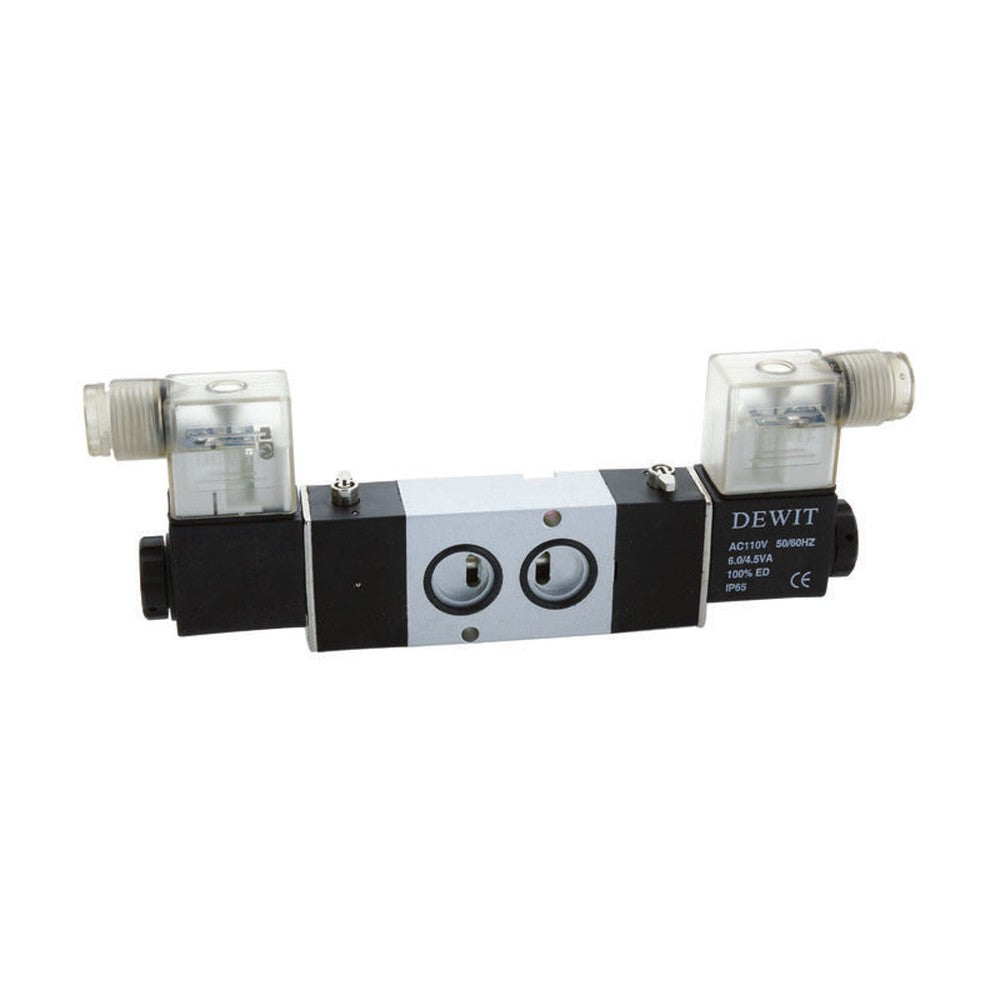

DE WIT VN7 Series NAMUR Pneumatic Solenoid Valve - 5/2-Way

DE WIT Series VN7 pneumatic solenoid valve with NAMUR interface, in a 5-way 2-position (5/2) configuration with single or double solenoid and internal pilot actuation. Its NAMUR design allows direct mounting onto standardized pneumatic actuators, eliminating piping and connecting fittings. It features a DIN connector with LED indicator and a locking auxiliary manual override.

Features:

• Function: 5 ports, 2 positions (5/2), NAMUR interface
• Control: single solenoid or double solenoid
• Fluid: compressed air filtered to 40 microns
• Actuation: internal pilot
• Port and connection: 1/8" (pressure, working and exhaust ports) or 1/4" (pressure and working ports, 1/8" exhaust)
• Orifice: 14.00 mm2 (Cv 0.78) or 16.00 mm2 (Cv 0.89) depending on port
• Operating range: 0.15 - 0.8 MPa (21 ~ 114 psi)
• Proof pressure: 1.5 MPa (215 psi)
• Temperature: -20 ~ 70 °C
• Body material: aluminum
• Available voltages: AC220V, AC110V, AC24V, DC24V, DC12V (AC +/-15%, DC +/-10%)
• Power consumption: AC 3.5 VA / DC 4 W
• Protection: IP65 (DIN40050), Class B rating
• Electrical connection: DIN connector with LED indicator
• Response time: 0.05 seconds
• Maximum frequency: 5 cycles per second
• Locking auxiliary manual override; CX2 coil
