High-Seal Adjustable Straight Fitting DIN 2353 / EN ISO 8434-1, Metric SNV Series (Body Only), Configure Sizes and Light or Heavy Series

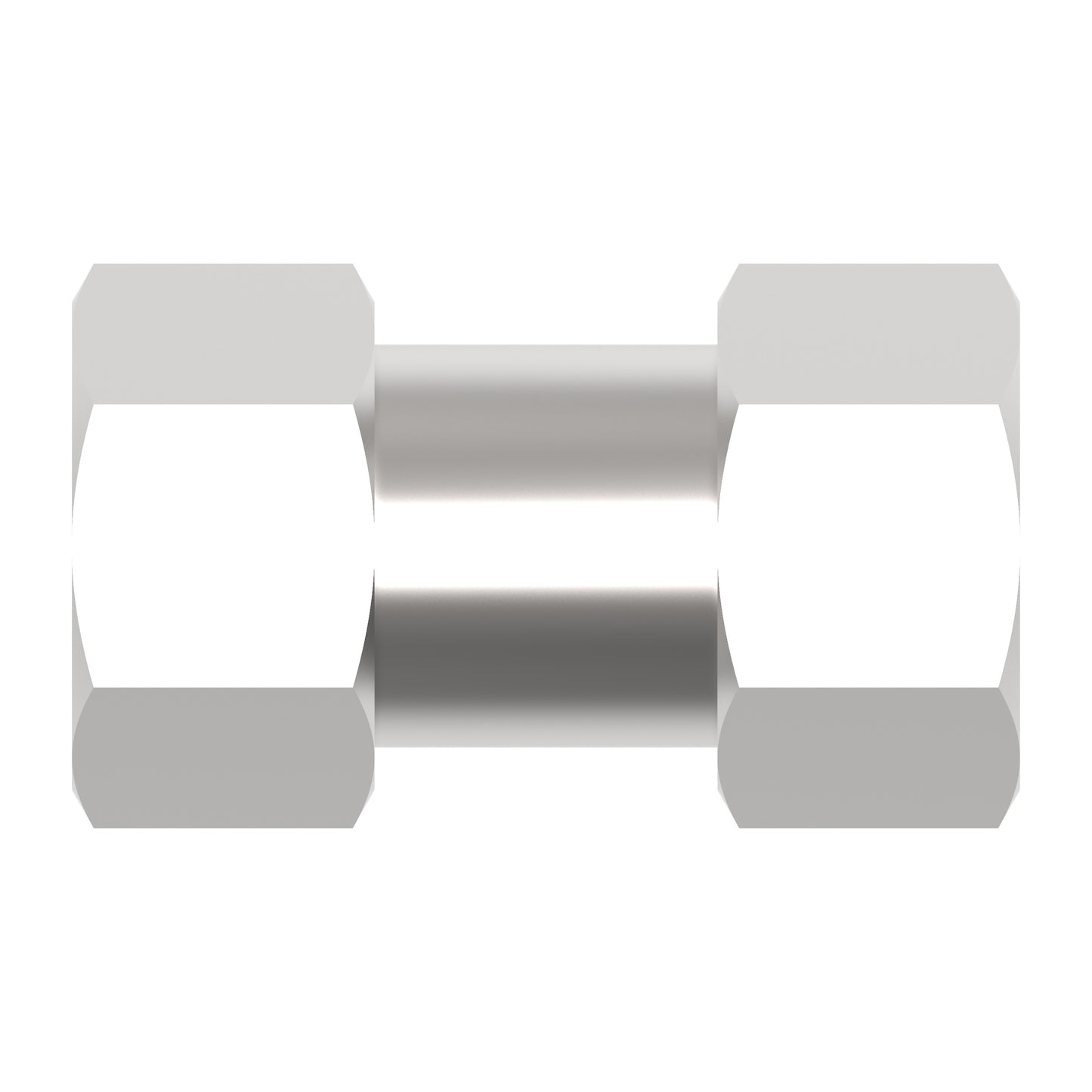

Danfoss Waltech® Adjustable Union — SNV Series. A highly engineered component for 100% leak-free coupling of metric steel tubing to the ports of valve blocks, cylinders and manifolds in high-pressure hydraulic systems.

Supplied as a complete factory-assembled kit, ready to install: body with pre-installed seals, metric retaining nut and precision cutting ring (ferrule) that grips the tube and forms a permanent seal.

The structural steel body is protected with Guardian Seal coating, providing more than 1,000 hours of resistance to red rust.

Available thread types:

• DIN (24° cone, DIN 2353 / ISO 8434-1): tube connection by cutting ring and metric union nut, with no port thread.
